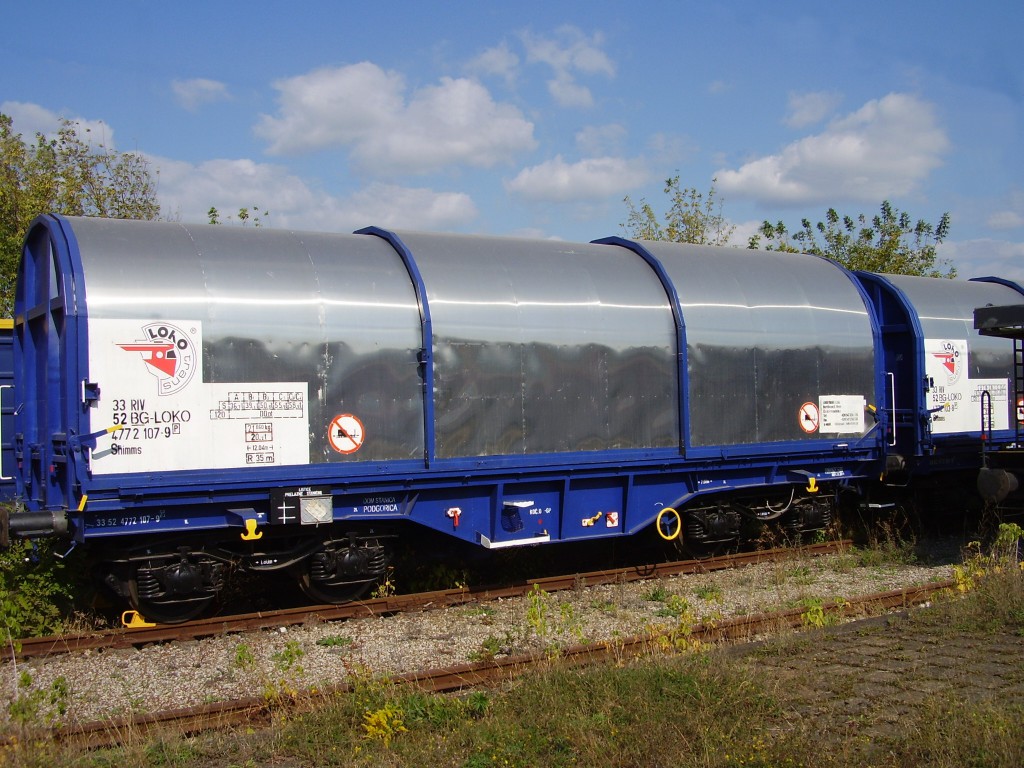

Shimms

Four-axle special freight wagon with movable three-part cover designed for transport of coiled sheets that must be protected from rain, snow and other climatic influences during transport.

Basic technical info

Bogie Y 25 Cs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 21800
Lenght over buffers (mm)   12040
Distance between pivots (mm) 7 000
Brake system O-GP
Max speed loaded / empty 100/120
  A – 36,5
  B1 – 38,9
  B2 – 50,7
  C2 – 55,7
  C3/C4 – 58,7
