Rgs

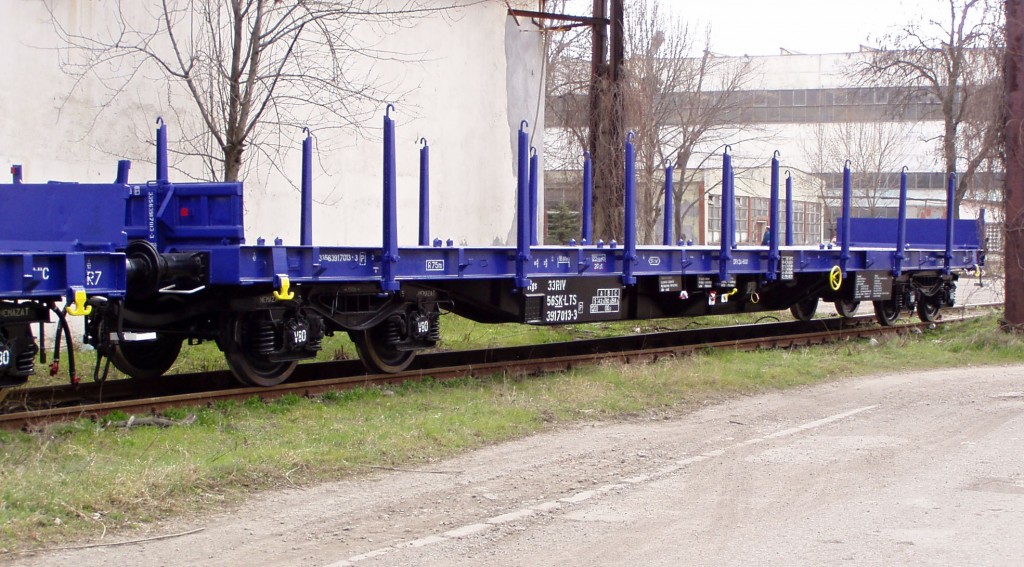

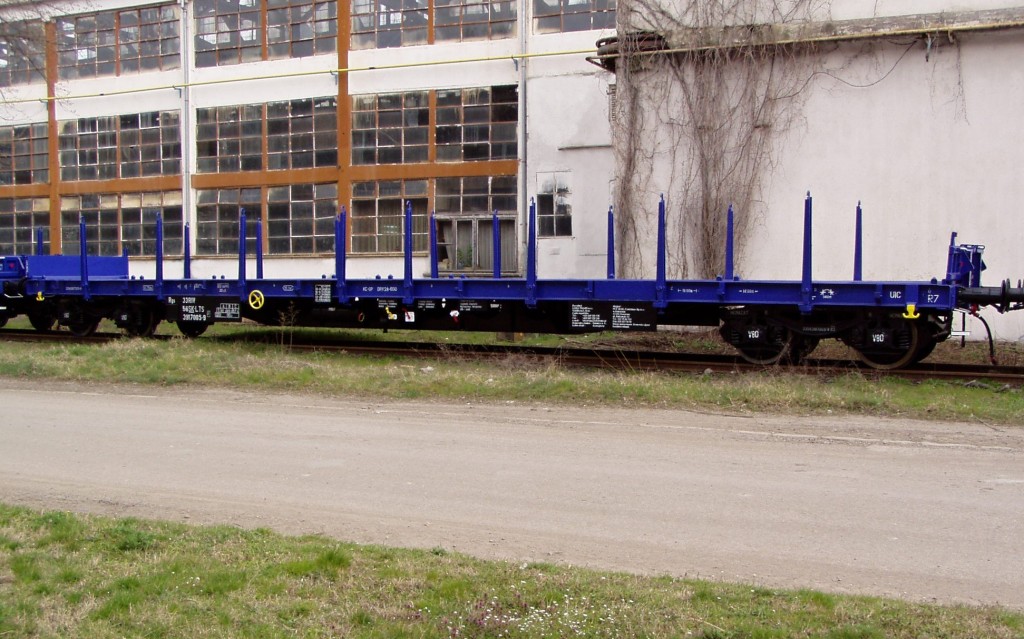

Four-axle flat wagon without sidewalls equipped with container elements and designed for transport of 10´, 20´a 40´ containers, piece goods of greater lengths (rails, tubing), do not require protection from climatic influences during transport.

Basic technical info

Bogie  Y25Cs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 22150
Lenght over buffers (mm) 19900
Distance between pivots (mm) 14860
Brake system KE-GP
Max speed loaded / empty 100/120
  A – 41,9
  B – 49,9
  C – 57,9
