Res

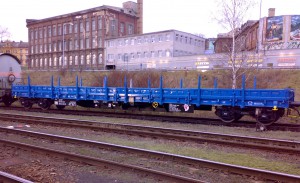

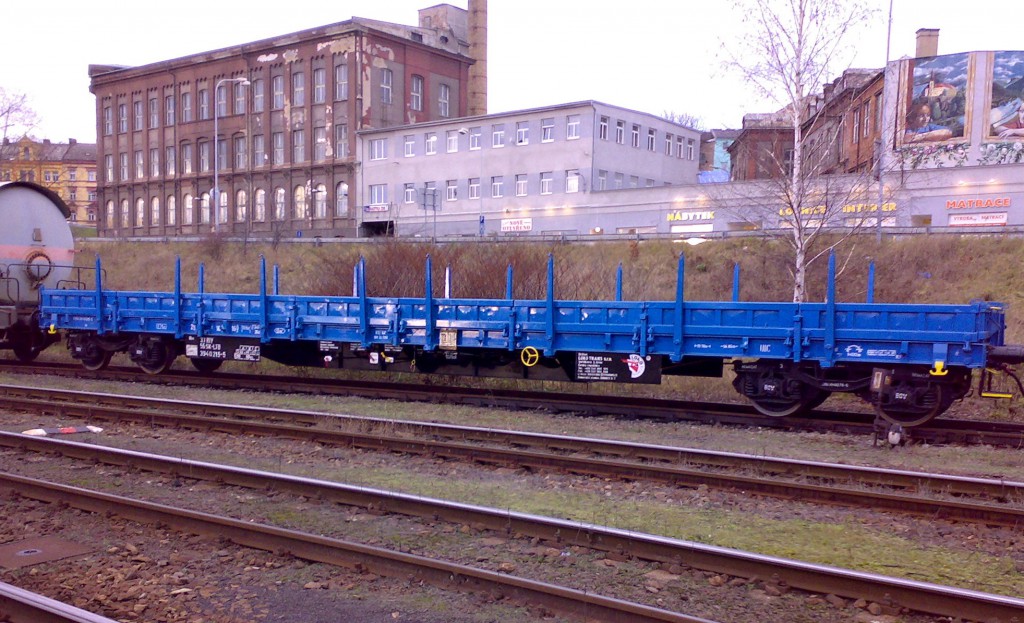

Four-axle flat wagon with higher sidewalls designed for transport of piece goods of greater lengths (rails, tubing), which do not require protection from climatic influences during transport.

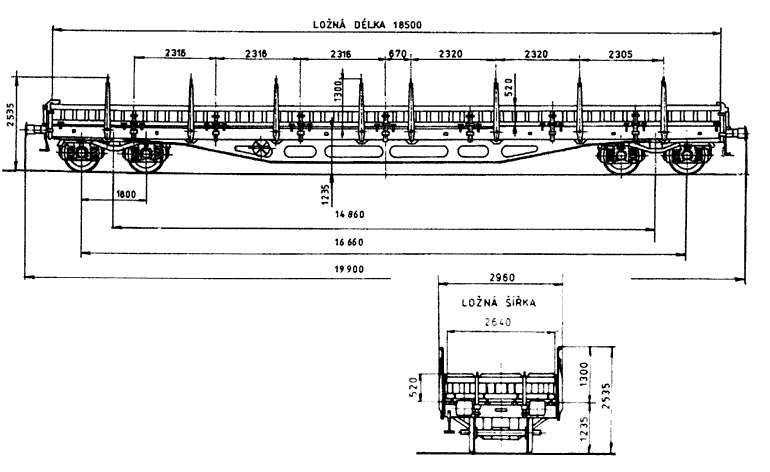

Basic technical info

Bogie  Y25Cs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 22400
Lenght over buffers (mm) 19900
Distance between pivots (mm) 14860
Brake system DK-GP/KE-GP
Max speed loaded / empty 100/120
  A – 41,5
  B – 49,5
  C – 57,5
