Uagpps

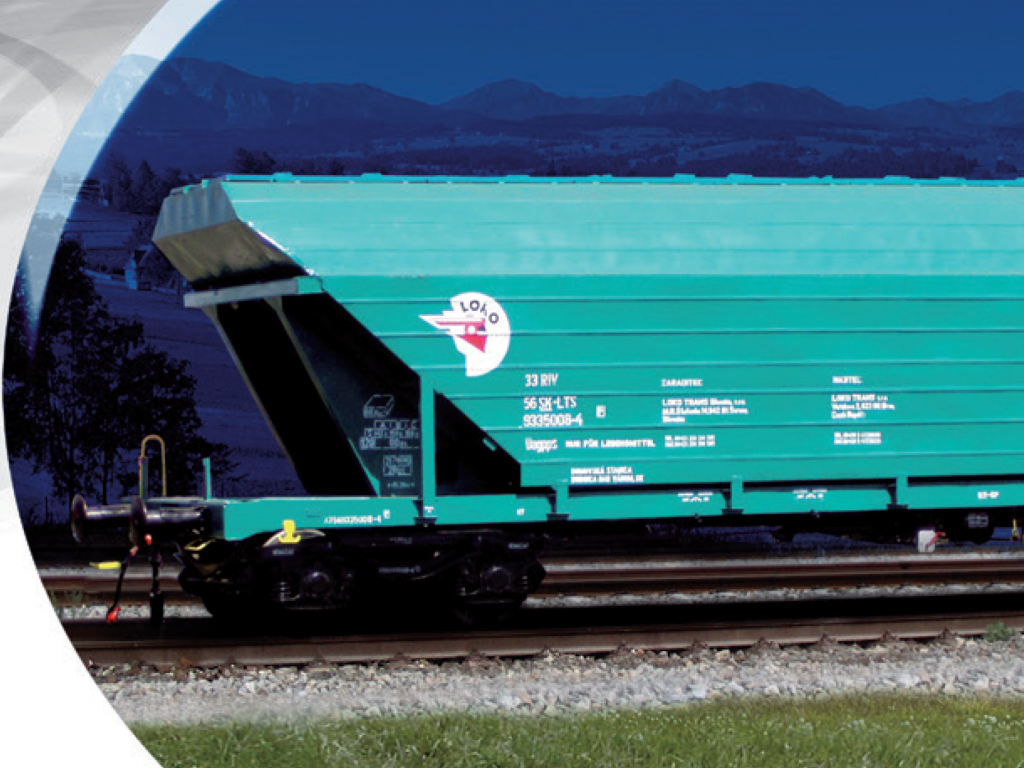

Four-axle hopper covered wagon designed to transport bulk commodities (especially cereals). The wagon is protected with an internal coating approved for contact with food.

Basic technical info

Bogie Y25Cs
Wheel set 4x / Ø 920 mm max.
Buffers 105A / 590 kN
Axle load (t) 20
Overall weight (kg) 22960

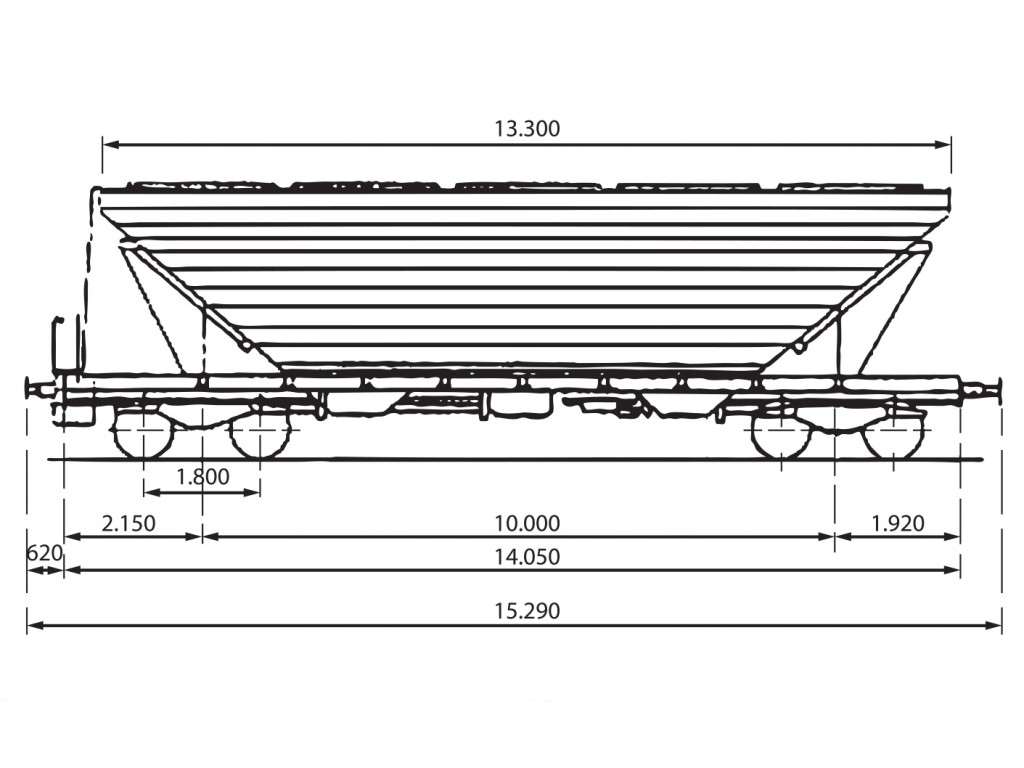

Lenght over buffers (mm) 15290
Distance between pivots (mm) 10000
Brake system KE-GP
Max speed loaded / empty 100/120
  A – 41,0
  B – 49,0
  C – 57,0
