242

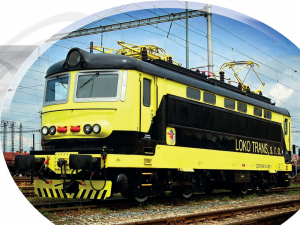

Locomotive 25 kW AC with variable switching power level on the primary side of the traction transformer. DC traction serial motors.

Basic technical info

Axle arrangment Bo’Bo‘

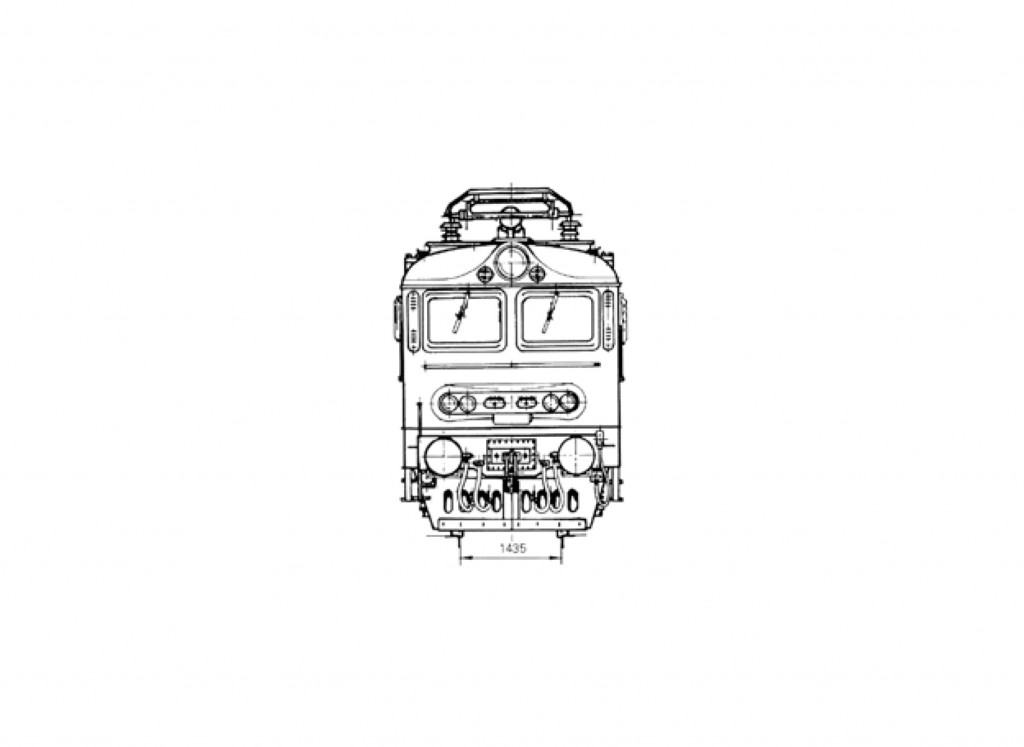

Rail gauge 1 435 mm

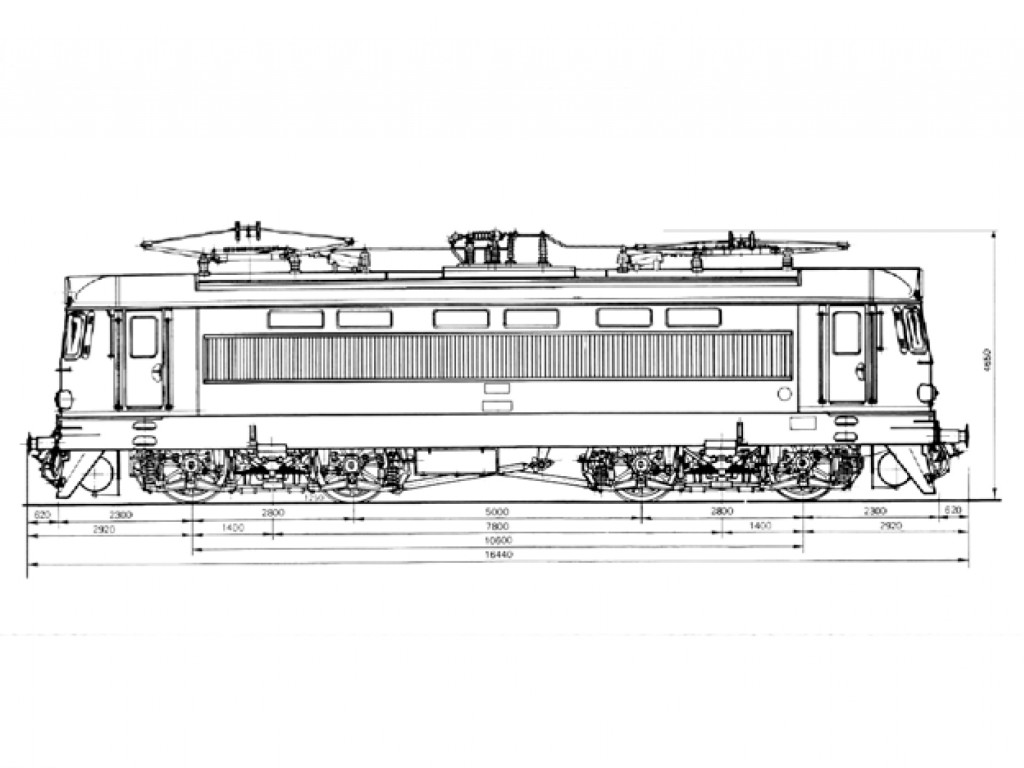

Lenght over buffers 16 440 mm
Distance between pivots 7 800 mm
Bogie wheel base 2 800 mm
Overall weight 84 000 kg
Maximum speed 120 km/h
Minimum curve radius 120 m
Continuous  power 3 080 kW
Traction system 25 kV~50 Hz
Continuous traction 173 kN
